Machine  Tools  Bearings



"State of the art machines require state of the art bearings".

From Micron accuracies to standard machining , Mac Technologies has been supplying quality and reliable bearings for such CNC machine tools since many years, thereby giving the Indian Industry the confidence and reliability to be at par with Global Leading giants, manufacturing such machine tools. Our competitive pricing and deliveries have given the Customers the confidence to use our products year after year with new technologies being updated frequently. Mac Marketing Corporation also offers nano precision by using Hydrostatic Technology for the Machine Tools Industry, which has enabled Micron Accuracy Production for various Industries

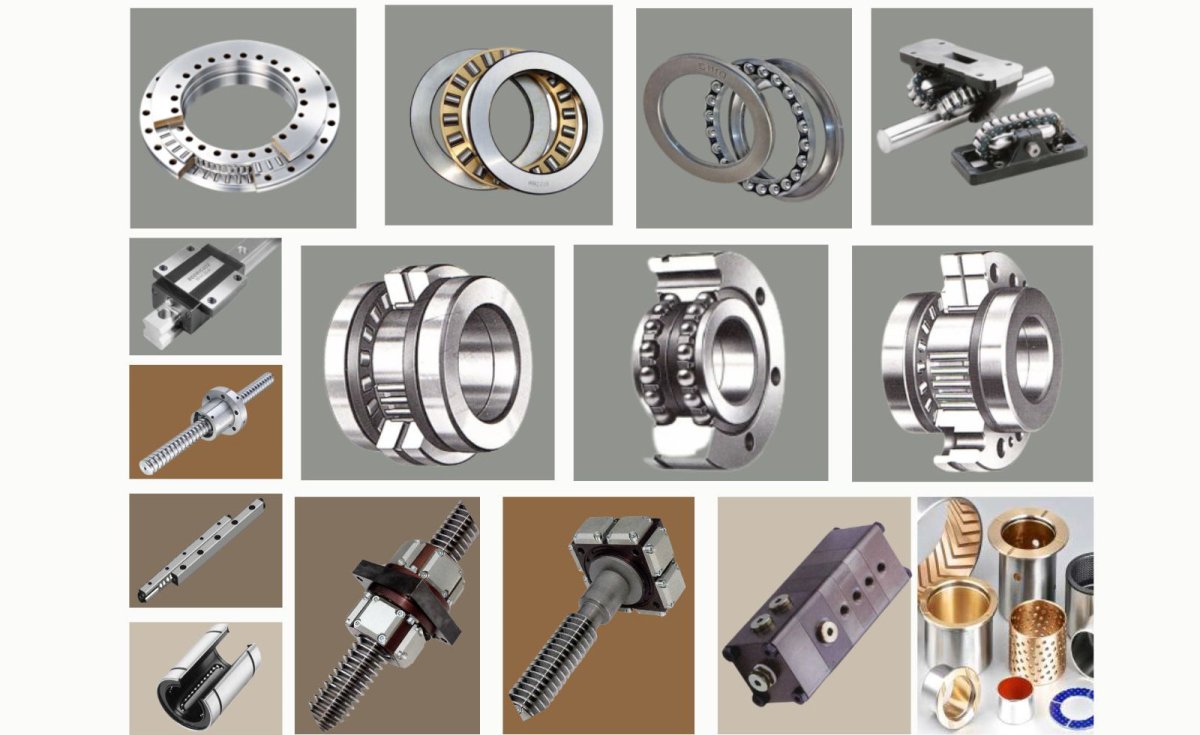

What we supply for the  Machine  Tools  Bearings

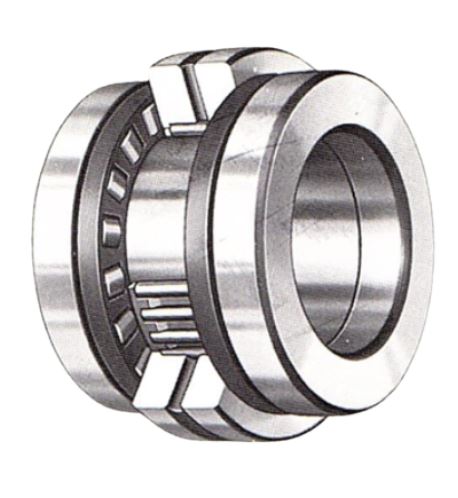

Needle roller-axial cylindrical roller bearings ZARN.

Needle roller/axial cylindrical roller bearings can support axial forces in one direction as well as high radial forces.

These bearings comprise a radial needle roller bearing and an axial cylindrical roller bearing with a plastic cage. They do not have an inner ring and require a shaft raceway that is hardened and ground. If the shaft cannot be used as a rolling bearing raceway, inner rings IR can be used instead.

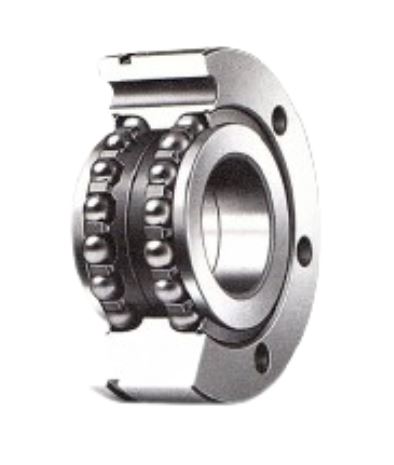

    Axial-angular contact ball bearings ZKLF.

    Bearings of the ZKLF series are double-row axial angular contact ball bearings and are mainly used for threaded drives. These bearings have a flange-mounted outer ring, integrated seals and represent an extremely economical solution when it comes to criteria such as simple connection design and low assembly costs.

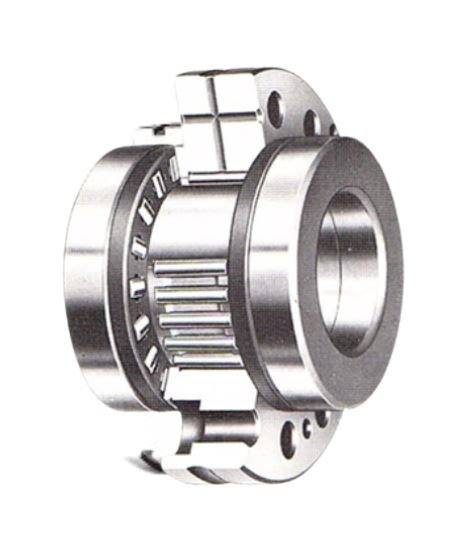

      Needle roller-axial cylindrical roller bearings ZARF for flange mounting.

      Needle roller/axial cylindrical roller bearings comprise an outer ring with radial and axial raceways, shaft locating washers, an inner ring, a radial needle roller and cage assembly and axial cylindrical roller and cage assemblies.

      Double direction
      Holes in the outer ring for screw mounting on the adjacent construction or in a radial locating bore

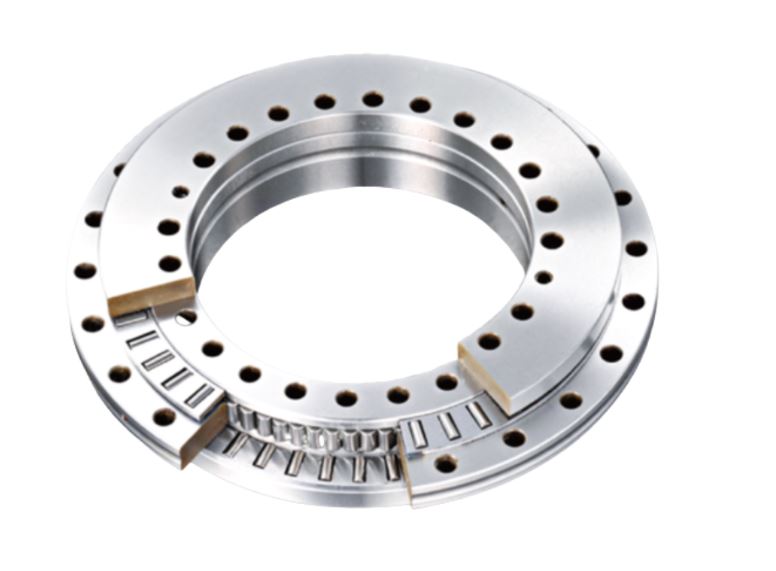

        Combined Thrust / radial cylindrical roller bearings known as YRT and YRTS series

         MAC technologies offers Rotary Indexing Table Bearings, popularly known as YRT bearings.

        Combined Thrust / radial cylindrical roller bearings known YRT and YRTS series are composed of two thrust roller bearings and one radial cylindrical roller bearing. Due to the special design of the internal structure of YRTS series bearing having higher speed limit can be achieved.

        These ready-to-fit, pregreased units are very rigid, have high load-carrying capacity and operate with particularly high accuracy. They can support radial forces, axial forces from both directions and tilting moments free from clearance. The above bearings also available in high-speed versions as well from ready stock deliveries and the dimension ranges from ID 50mm to 1.3 Metres.

          We have various types of bearings for your applications; however, if you do not find what you’re looking for please do not hesitate to contact us directly.

          We can help for any Special Design and customized configurations of Bearings, which is supplied at no extra cost. Our free expertise will assist you on right product selection.
